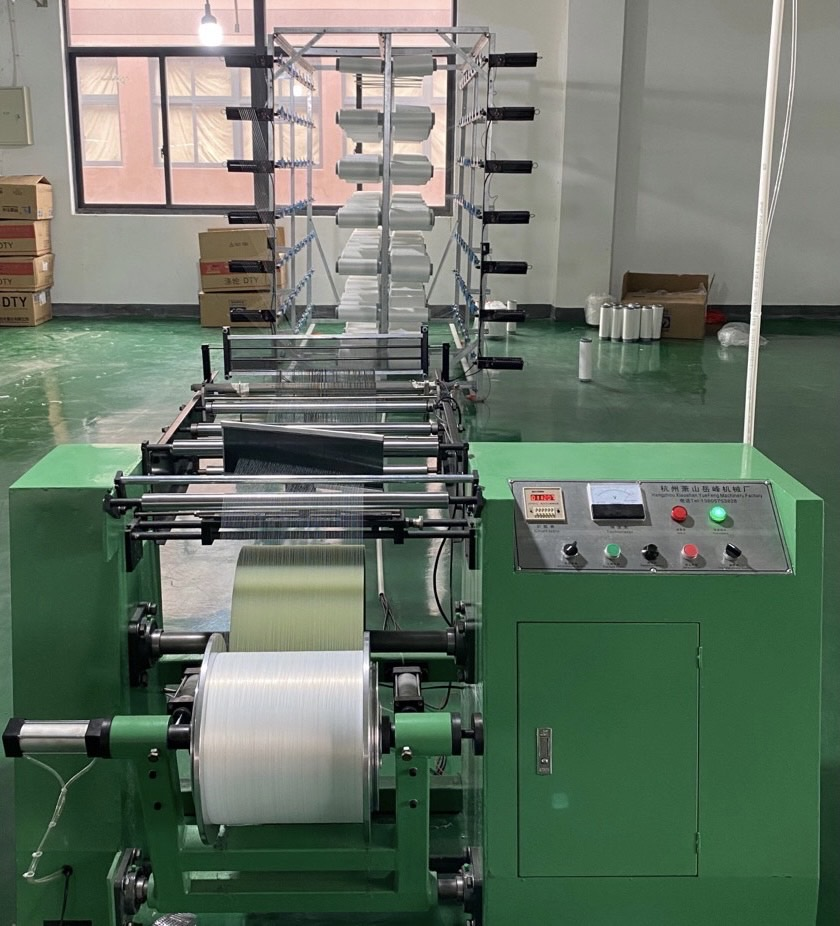

Warping Machine
It is suitable for various elastic, inelastic and trademark high-quality warping. This machine uses a frequency converter to control the motor speed. It is driven by the friction between the roller and the warp plate. The friction force can be adjusted as required to make the warp yarn on the plate meets the best requirements.
Characteristic
a. Electronic calculator, freely choose the required length setting to ensure accurate quantification and reduce yarn waste.
b. The automatic brake device for yarn breakage ensures that the yarn brakes in time before entering the warp disc.
c. The retractable device of the yarn steel buckle can be adjusted according to the density of the warping.
d. The creel precision yarn feeder ensures that the tension is consistent from the beginning of the warping to the completion of the warping.
e. The number of creels is divided into 100 pcs for selection.
Warping speed 整经速度 | can be adjusted, 960 rpm 整经机的速度可以调，960转。
|
Power 功率 | 1.5KW
|
Yarn creel pcs 纱线经筒数 | standard 100 pcs 标准是100个 |
Dimension 尺寸 | Pneumatic warping machine host气动整经机主机：1700*1000*1200 Pneumatic warping machine shelf气动整经机纱架：2900*605*520 |
Weight重量 | 760KG |
