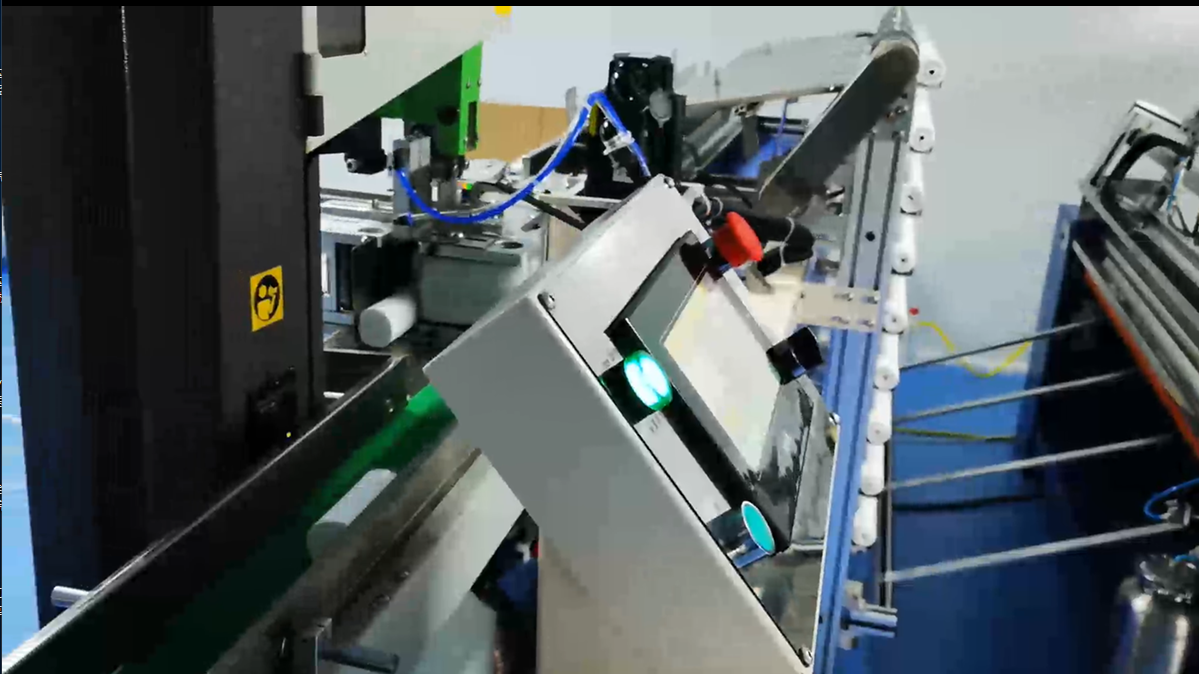

Automatic bandage wrapping paper and slitting production line
1.This machine can realize automatic core pulling, roll forming and roll dropping, which reduces the process flow and saves labor.
2.The finished products produced by this machine are flat and consistent in appearance with high qualification rate.
3.Blank unwind, bi-directional horizontal adjustment; individually adjustable. Precision linear guide rails for accurate and durable positioning.
4.Unwinding with pneumatic tension brake: active unwind synchronizes the unwind tension to reduce shrinkage.
5.This machine is equipped with a blank auxiliary winding system; maximum load 250KG pneumatic linkage device horizontal winding.
6.Reduce the labor intensity of operators, safe and reliable.
Automatic paper wrapping bandage machine function parameters | |||
1 | Nominal width：1300mm | 10 | Total power：2.8KW |
2 | Effective width： 1250mm Woven skimmed gauze | 11 | Input voltage 380VFrequency50HZ Three-phase five-wire system，one zero，one grounded |
3 | Design speed：100m/min | 12 | Pneumatic：0.5-0.7mPa |
4 | Process speed：75m/min | 13 | Main motor control mode： Frequency conversion |
5 | Maximum Grey Fabric Roll Diameter：700mm weight: 150KG | 14 | Adjustment method： Touch screen (manual + electric + servo) |
6 | Automatic Wrapping Roll Straight Range：22-52mm | 15 | PLC：Mitsubishi；Servo System: ：Xunjie |
7 | length 2750 xwidth 1250 xheight1300mm | 16 | Auxiliary drive：2.2KW Shanghai Zhongda Frequency Conversion Specialized Hard Gear Reducer |
8 | Gross Weight：1350KG Net weight：1100KG | 17 | Main Inverter：Delta —VFD—M2.2KW |
9 | Shift production efficiencies：>1500/10h | 18 | Monitor：Wyland 10吋 |
Configuration features | |||
1.This machine can realize automatic core pulling, roll forming and roll dropping, which reduces the process flow and saves labor. 2.The finished products produced by this machine are flat and consistent in appearance with high qualification rate. 3.Blank unwind, bi-directional horizontal adjustment; individually adjustable. Precision linear guide rails for accurate and durable positioning. 4.Unwinding with pneumatic tension brake: active unwind synchronizes the unwind tension to reduce shrinkage. 5.This machine is equipped with a blank auxiliary winding system; maximum load 250KG pneumatic linkage device horizontal winding. | |||
Functional parameters of automatic slitting machine
1 | Raw material: Cylindrical paper wrapped bandage roll | 10 | Total power：3.7KW |
2 | Nominal width：160CM | 11 | Input voltage：380V Frequency：50HZ Three-phase five-wire system |
3 | Design speed：80cut/min | 12 | Pneumatic：0.5-0.7mPa ≥1m³/min |
4 | Process speed：60cut/min | 13 | Main motor control mode： Frequency control + servo feeding |
5 | Maximum slit roll diameter：6CM | 14 | Adjustment mode: touch screen + PLC (manual + automatic switching) |
6 | Automatic Wrapping Roll Straight Range：18-52mm | 15 | Main Inverter：Delta—VFD—M3KW |
7 | Mounting Dimensions：length 380CM width 3180CM height 185CM | 16 | Auxiliary drive：3KWSpecialized hardened gear reducer for frequency conversion |
8 | Package Dimensions：length 350CMwidth 125CMheight200CM | 17 | PLC：Mitsubish，Touch Screen Servo: Xunjie |
