Cotton Swab Machine
Introduction
Highlights:：Automatic bagging and sealing features

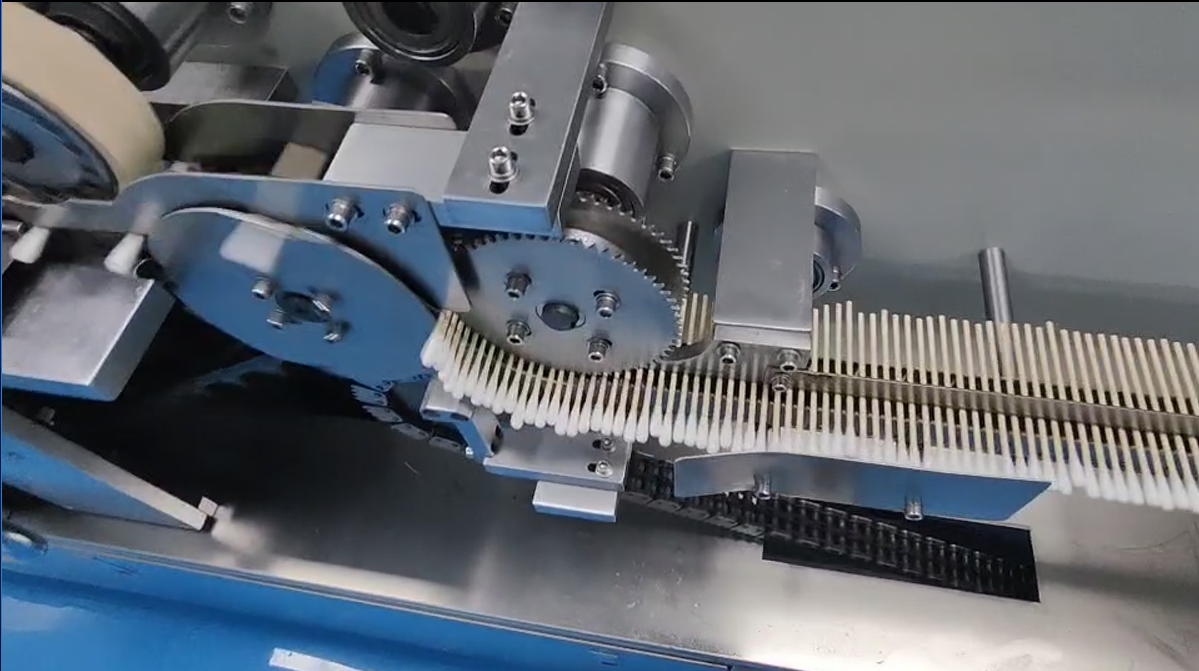

The total length of this swab machine is about 6 meters, the surface is made of stainless steel, beautiful and easy to clean. Compared with the traditional cotton swab machine greatly save the workshop space. The main machine adopts the new type of flatbed machine, the cotton head is even and beautiful, the machine can reach a stable speed of 1000 pieces / min, the stick is convenient, equipped with a lower stick device, more saving raw materials. High-quality new design M-type drying box (the first in the country), covers an area of small, long drying time, low temperature, energy-saving and power-saving and minimize the cost of production, the perfect solution to the problem of mold due to humidity, long downtime will not yellow. The machine is the domestic intelligent professional machinery, perfect performance, equipped with automatic bagging device, automatic sealing device, from the feed to the completion of packaging, once in place, the whole robot operation, no artificial contact with the product caused by product pollution. Under normal operation, the whole machine can be operated by one person, which saves 3-4 workers compared with the common old medical swab machine. It really achieves labor saving, environmental protection and hygiene.
Equipment parameters设备参数
DG-COGC光眼 | 2个 ZWYP6-D100NR-M18（Raw material testing原材料检测） |
External glue motor外胶水电机 | 4GN-25K（Chuan Ming Speed Control Motor川铭调速马达）（CHEEMING） |
Internal glue motor内胶水电机 | 5GN40K（Chuan Ming Speed Control Motor川铭调速马达）（CHEEMING） |
governor调速器 | 25W/governor调速器60W（CHEEMING） |
Cotton absorbing fan吸棉风机 | HG-750S Whirlpool air pumps HG-750S型漩涡气泵 |
touchscreens触摸屏 | Willen威伦MT8102iQ（(There are 2 buttons each for start, stop and emergency stop at the front and rear of the machine)(机器前后有启动，停止，急停各2个按钮） |
U-shaped heat sink heat pipe U型散热片发热管 | 2 left and right ovens each左右烘箱各2条，380V2000W（(M type drying oven)(M型烘干箱） |
Main Electric Motor主电机马达 | YX3-100L1-4(2.2KW) B3 |
Suction bag fan吸袋风机 | Tongda Vacuum Pump通达真空泵（XD-040 380V 1.5KW） |
M type oven blower M型烘箱鼓风机 | 1个，single-box electric powerhouse单箱电CZ-TD550W 220V |
PLC | Mitsubishi日本三菱 FX3U-80MT/ES-A |
Shihlin servo士林伺服 | SDE-400W |
Shihlin Inverter士林变频器 | SC3-043-2.2K |
shilin kaikai士林空开 | Contactors 接触器CJX2-5011 CJX2-1210 CJX2-0910 |
Solid State Relay固态继电器 | 1 three-phase solid state 三相固态1个 |
filters滤波器 | 10A |
relay (electronics) 继电器 | FIF |
switching mode power supply开关电源 | LPS-200-24 |
Cylinder pneumatic components气缸气动元件 | Airtac亚德客整套 |
Automatic Sealing Machine自动封口机 | 0.8kw |
Sealing width封口宽度 | 6-10mm with ink stamp 6-10mm，带墨印 |
Total machine power机器总功率 | Approx. 10 kW 约10千瓦 |
Number of operators操作人数 | The whole machine one person to operate the first half, the second half of a person to play in the bag when the bag (2-3 times per hour) each time to put the bag on both sides of a total of 300-800 between the machine sucks the bag per minute the fastest 30-38 bags or so!整机一人操作前半部分，后半部分有一人打中包时换包装袋（每小时放2-3次）每次放袋两边共300-800个之间，机器吸袋每分钟最快30-38袋左右 |
Length of cotton stalks processed by the main machine主机加工棉杆长度 | 8cm-12cm |
Speed速度 | 50pcs/bag, speed 1100pcs/min 50支/袋，速度1100支/分 30pcs/bag, speed 900pcs/min 30支/袋，速度900支/分 20pcs/bag, speed 700pcs/min 20支/袋，速度700支/分 10 pcs/bag, speed 300pcs/min 10支/袋，速度300支/分 |
